+.gg ggplot2scDesigner Exercises
Microbiome Networks
Which microbes are friends with one another? Unlike human social networks, there is no simple way to observe microbe-microbe interactions – we have to make do with indirect evidence. One approach uses population profiles as a proxy for ecological interaction. Taxa that often co-occur are understood to have cooperative ecological interactions, while those that don’t are thought to compete for the same niche.
Many algorithms have been designed around this intuition, all trying to go beyond simple co-occurrence and instead capture more complex types of dependence. A challenge in practice is that it’s hard to know which method to use when, since the problem is unsupervised. Even when thorough simulation benchmarking studies are available, it’s often not obvious how well those simulation setups match our problems of interest.
Let’s use scDesigner to benchmark network estimation methods using data from rounds 1 and 2 of the American Gut Project. We will simulate data with known correlation structure and taxa-level marginals estimated from the study data. The block below reads in the data.
Code
counts <- read_csv("https://github.com/krisrs1128/talks/raw/master/2023/20231206/exercises/amgut-counts.csv") |>
column_to_rownames("taxon")
metadata <- read_csv("https://github.com/krisrs1128/talks/raw/master/2023/20231206/exercises/amgut-metadata.csv")
exper <- SummarizedExperiment(
assays = SimpleList(counts = as.matrix(counts)),
colData = metadata
)- Estimate a simulator with the taxon-wise regression formula
~log(sequencing_depth) + BMI. Comment on the quality of the fitted model.
We’ve estimated a zero-inflated negative binomial location-shape-scale (ZINBLSS) models for each gene, using a gaussian copula to capture dependence. The data structure below captures all the simulator components, and we can swap pieces in and out to modify the form of the simulator. For example, if we wanted, we could mutate the family and link function associated with particular features.
Code
sim <- setup_simulator(
exper,
~ log(sequencing_depth) + BMI,
~ ZINBLSS()
) |>
estimate(mstop = 100)
sim#> [Marginals]
#> Plan:
#> # A tibble: 6 x 3
#> feature family link
#>
#> 1 326792 The simulated data is always a SummarizedExperiment. This means that any workflow that applied to the original data can be applied to the simulated one without any changes. Notice also that sample defaults to drawing samples from the same design as the original input experiment (we’ll modify this using the new_data argument in a minute).
Code
simulated <- sample(sim)
simulated#> class: SummarizedExperiment
#> dim: 45 261
#> metadata(0):
#> assays(1): counts_1
#> rownames(45): 326792 181016 ... 364563 301645
#> rowData names(0):
#> colnames: NULL
#> colData names(167): X.SampleID BarcodeSequence ... Description
#> sequencing_depth

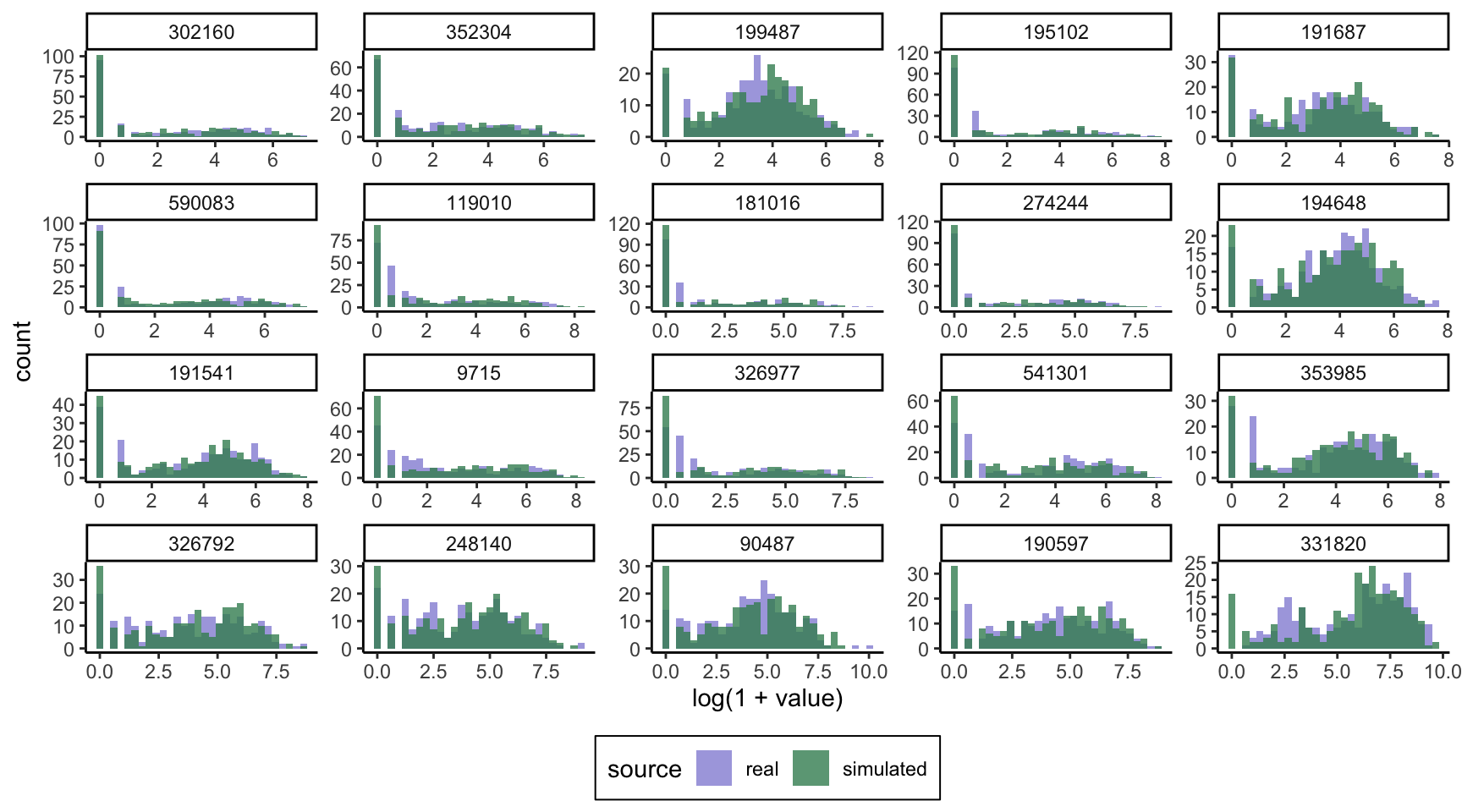

Let’s compare the marginal count distributions for the real and simulated data. We’ll need the data in “long” format to be able to make the ggplot2 figure. The pivot_experiment helper can transform the original SummarizedExperiment objects in this way. Notice that the simulated data tends to overestimate the number of zeros in the high-abundance taxa. To refine the simulator, we should probably replace the zero-inflated negative binomial with ordinary negative binomials for these poorly fitted taxa.
Code
bind_rows(
real = pivot_experiment(exper),
simulated = pivot_experiment(simulated),
.id = "source"
) |>
filter(feature %in% rownames(simulated)[1:20]) |>
ggplot() +
geom_histogram(
aes(log(1 + value), fill = source),
position = "identity", alpha = 0.8
) +
facet_wrap(~ reorder(feature, value), scales = "free")
Are the learned relationships with BMI plausible? We can compare scatterplots of the real and simulated data against this variable. Note that, by default, the ribbons will be evaluated along all variables, which makes for the jagged ribbons (neighboring values for BMI might have different sequencing depth, potentially leading to quite different predictions). To remove this artifact, we can assume that all samples had exactly the same sequencing depth.
Code
new_data <- colData(exper) |>
as_tibble() |>
mutate(sequencing_depth = 2e4)
plot(sim, "BMI", sample(sim, new_data = new_data), new_data = new_data)
- Visualize the correlation matrix estimated by the simulator’s copula model. Pick a pair of taxa with high correlation under this model and visualize the joint distribution of their ranks. Is the model’s estimate appropriate?

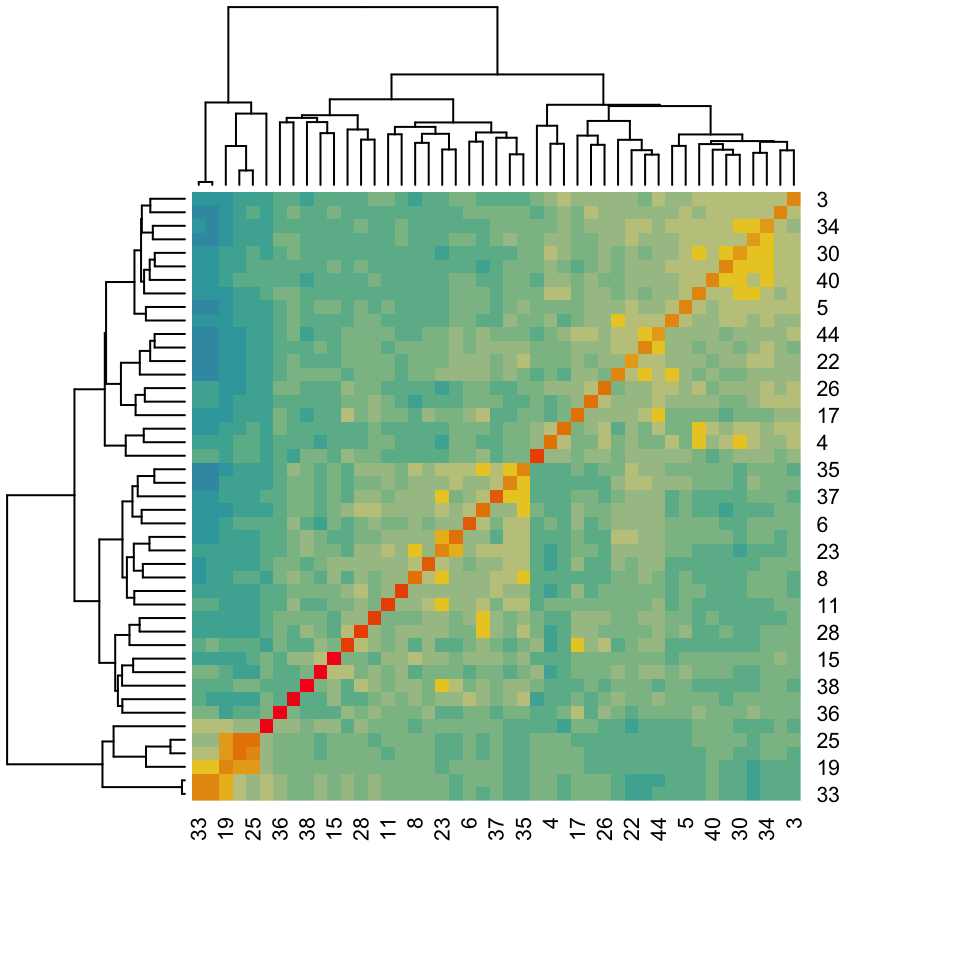

There are a few pairs of taxa that are very highly correlated, and there are also a few taxa that seem to have higher correlation across a large number of taxa (e.g., the taxon in row 34). There is no obvious banding or block structure in this real data, though.
Code
rho <- copula_parameters(sim)
heatmap(rho)
The pair below is one of those with high positive correlation. You can replace the selection with the commented out line to see what one of the anticorrelated pairs of taxa looks like.
Code
#taxa <- rownames(exper)[c(33, 43)]
taxa <- rownames(exper)[c(14, 25)]
pivot_experiment(exper) |>
filter(feature %in% taxa) |>
pivot_wider(names_from = feature) |>
ggplot() +
geom_point(aes(log(1 + .data[[taxa[1]]]), log(1 + .data[[taxa[2]]])))
- Replace the correlation matrix with a design of your own. Simulate data from this modified model and estimate the microbe interaction network using (i) the SpiecEasi algorithm and (ii) the Ledoit-Wolfe covariance estimator. According to your benchmark, which method is preferable? How might you refine your simulator to improve its faithfulness to the covariance you observed in (b)?
Let’s replace the current copula correlation structure with one from a block diagonal matrix. In this example, the off-diagonal correlations are 0.6. We can use mutate_correlation to swap this new correlation matrix into our earlier simulator.
Code
rho <- c(0.4, .6, 0.8) |>
map(~ matrix(., nrow = 15, ncol = 15)) |>
bdiag() |>
as.matrix()
diag(rho) <- 1
simulated <- sim |>
mutate_correlation(rho) |>
sample()

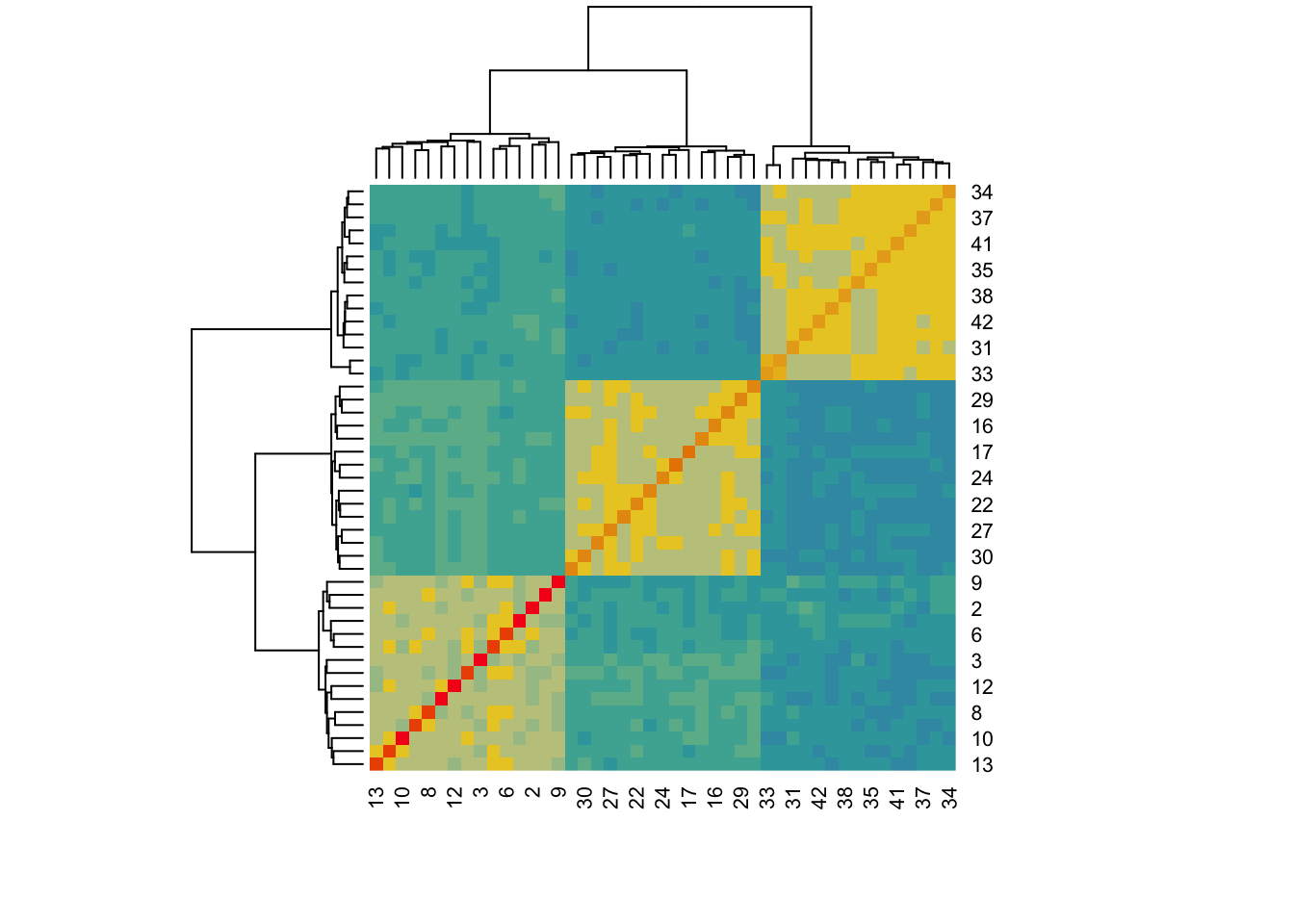

x <- t(assay(simulated))Let’s first look at the SpiecEasi covariance estimate. This is a variant of the graphical lasso that is designed to be well-adapted to microbiome data. The good news is that it does warn that the default choices of \(\lambda\) are too large, which is correct in this case. Unfortunately, it took a while to get this answer, and we had already been quite generous in allowing it to fit 10 choices of \(\lambda\).
Code
rho_se <- spiec.easi(x, nlambda = 10, pulsar.params = list(rep.num = 1)) |> getOptCov() |>
as.matrix() |>
cov2cor()
heatmap(rho_se)

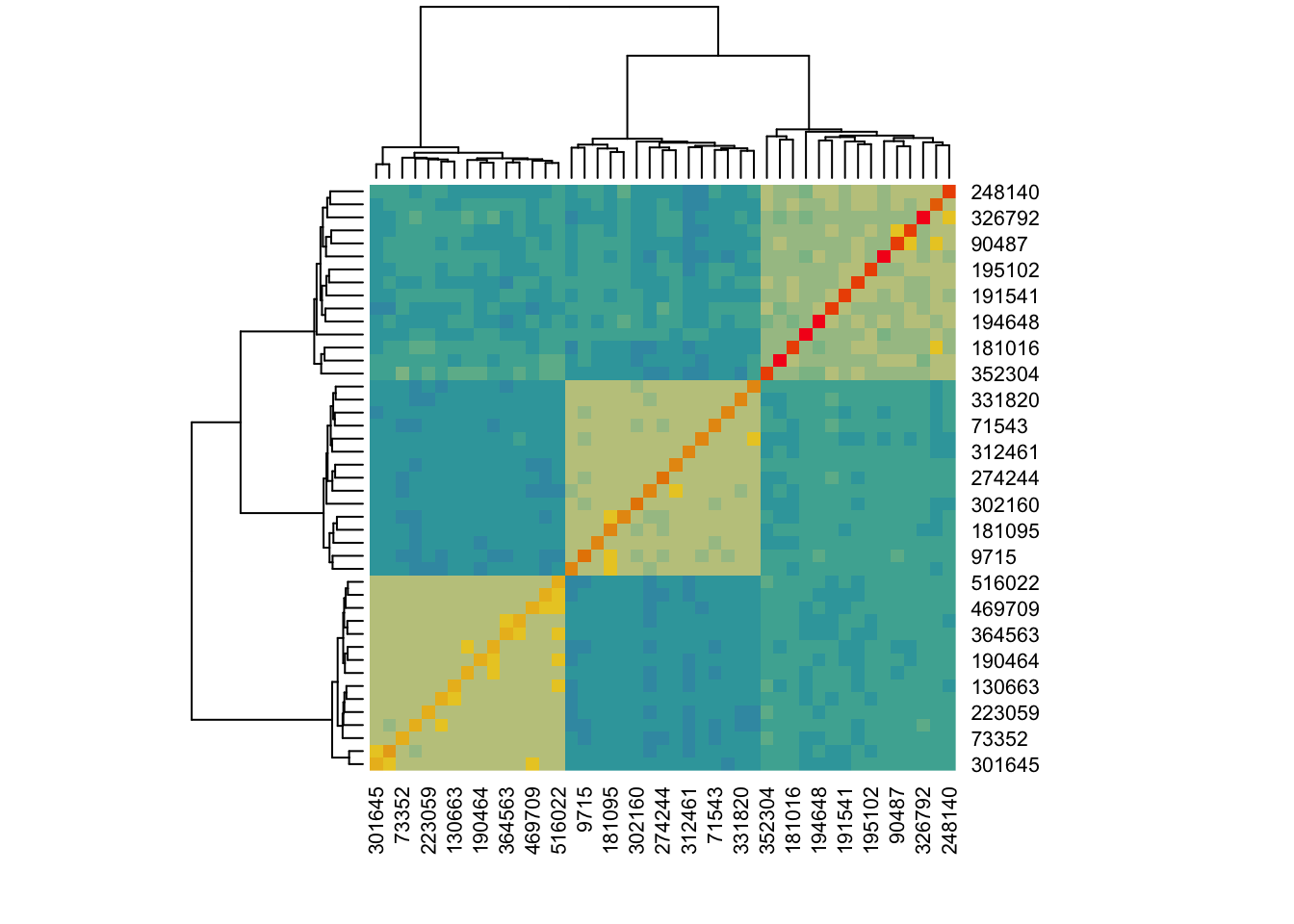

Let’s instead use the Ledoit-Wolfe estimator on the log-transformed data. The results make much more sense.
Code
rho_lw <- CovEst.2003LW(log(1 + x))$S |>
cov2cor()
heatmap(rho_lw)

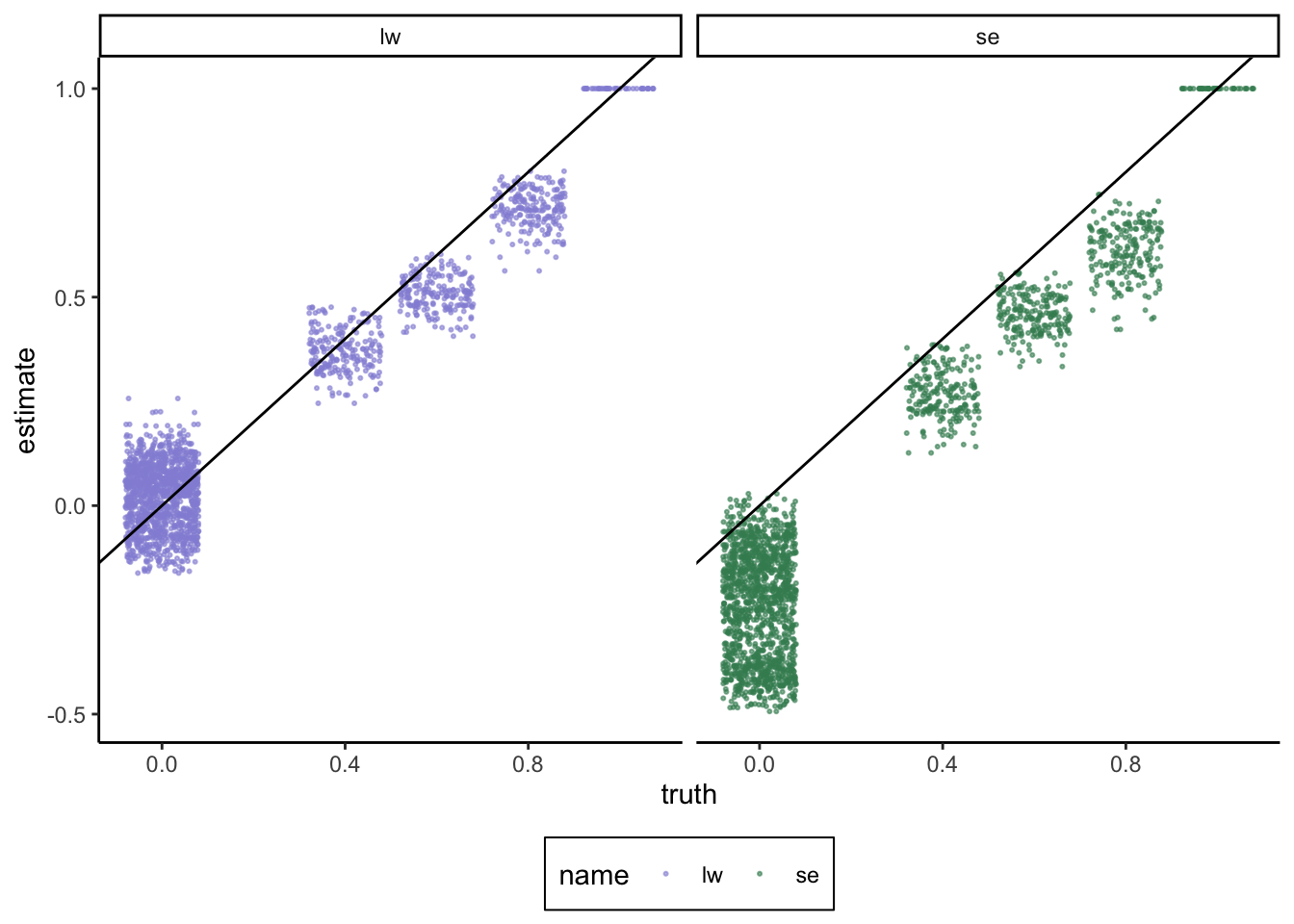

Since color comparisons are difficult to evaluate precisely, we can also make a scatterplot comparing the different covariance estimators.
Code
data.frame(truth = c(rho), se = c(rho_se), lw = c(rho_lw)) |>
pivot_longer(-truth, values_to = "estimate") |>
ggplot() +
geom_jitter(aes(truth, estimate, col = name), alpha = 0.6, size = 0.4) +
geom_abline(slope = 1) +
facet_wrap(~name)
This example shows that, when we start with real template data, it’s not too hard to setup a benchmarking experiment. It’s generally easier to reconfigure the components of an existing simulator than it is to specify all the simulation steps from scratch. There is the secondary bonus that the data tend to look close to real data of interest, at least up to the deliberate transformations needed to establish ground truth.
We could imagine extending this example to include different data properties (sample sizes, variable block sizes and correlations, more general correlation structure) and estimation strategies (alternative transformations or estimators). Design changes could be implemented using expand_colData, changes in the signal can be specified as above with mutate_correlation, and any workflow can be used as long as it applies to a SummarizedExperiment object.
Augmenting Spatial Data
Modern molecular biology aims to build a map of the cell, its molecular machinery, and its relationships within larger systems (e.g., the circulatory system). Yet, until 2018 - 2020, this map had no sense of spatial orientation. This has changed with the advent of spatial sequencing technologies, where we can now measure the abundances of individual molecules together with their spatial location within tissue samples.
In this exercise, we will build a model of spatial transcription in the dorsolateral prefrontal cortex (DLPFC). This model could then be used downstream to create negative controls and ensure properly calibrated spatial differential expression analysis. The block below reads a small subset of DLPFC data into an object of class SpatialExperiment.
Code

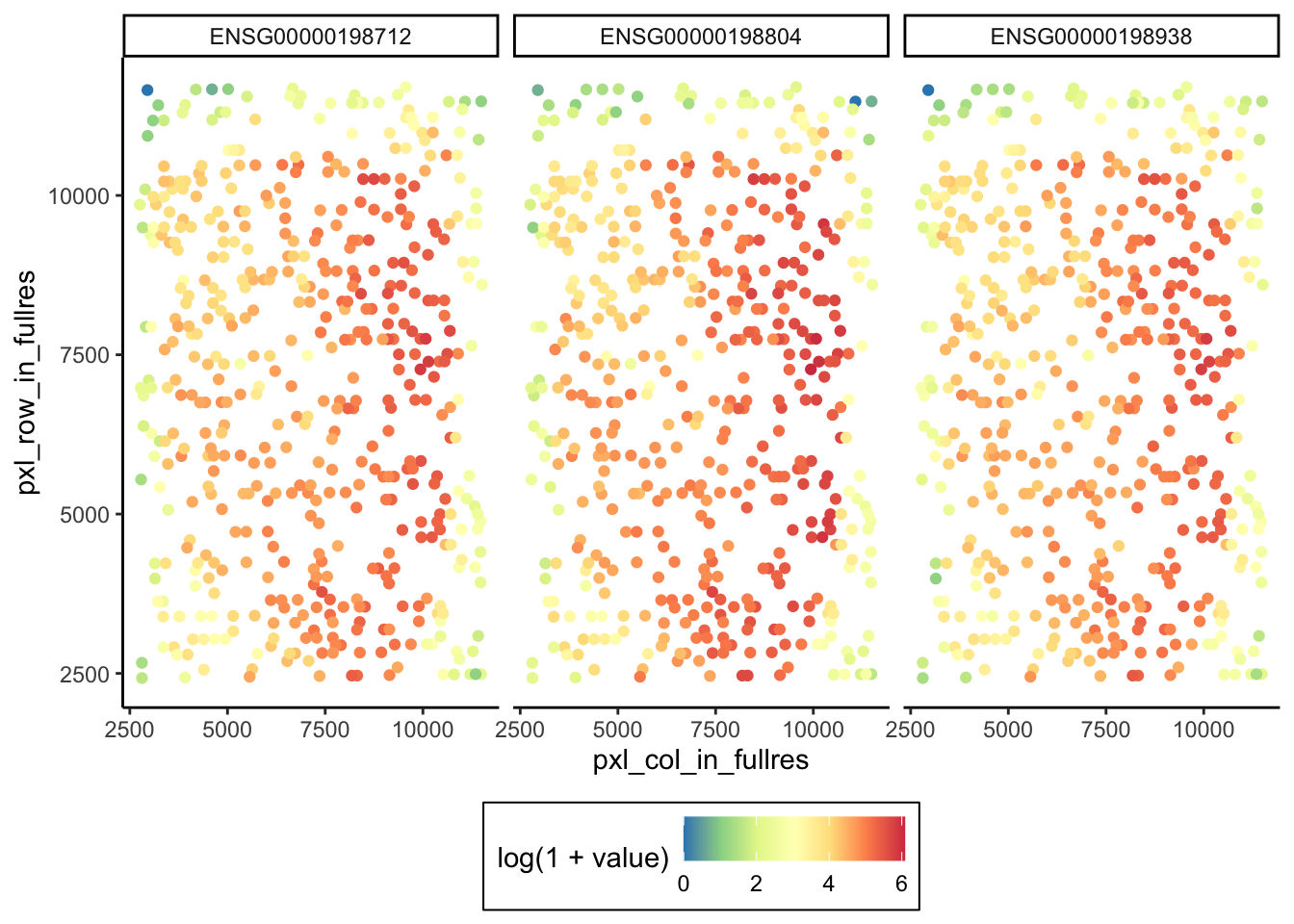

spatial_experiment <- readRDS(url("https://github.com/krisrs1128/talks/raw/master/2023/20231206/exercises/dlpfc-v2.rds"))- Visualize the spatial gene expression pattern associated with a subset of genes of your choice. What is the extent of spatial smoothness? How skewed are the expression levels?
For the genes that we’ve selected, there is a trend where the expression levels increase along individual rows but don’t change too much along a single column, once they’re within a certain closed region (though see the refinements below).
Code
coords <- spatialCoords(spatial_experiment)
t(assay(spatial_experiment)[1:3, ]) |>
as.matrix() |>
bind_cols(coords) |>
pivot_longer(-starts_with("pxl")) |>
ggplot() +
geom_point(aes(pxl_col_in_fullres, pxl_row_in_fullres, col = log(1 + value))) +
facet_wrap(~ name)
- Estimate a simulator based on your observations from (a). Visualize the estimated mean functions across the tissue (not just at the observed locations).
The simulator formulas can only refer to columns in the experiment’s colData. This makes this problem a bit tricky, since the relevant spatial predictors are not available in this way.
Code
colnames(colData(spatial_experiment))#> [1] "barcode_id" "sample_id" "in_tissue" "array_row" "array_col"
#> [6] "ground_truth" "cell_count"
We could always manually input them using the same spatialCoords function that we used to make the plot above. There is a more direct way using augment, made possible because scDesigner can check experiment data classes in order to identify relevant variables for modeling:
Code
spatial_experiment <- augment(spatial_experiment)
colnames(colData(spatial_experiment))#> [1] "barcode_id" "sample_id" "in_tissue"
#> [4] "array_row" "array_col" "ground_truth"
#> [7] "cell_count" "pxl_col_in_fullres" "pxl_row_in_fullres"
We’ll just use the interaction between two univariate spline functions. We’re using negative binomial models – it’s educational to try out other families (e.g., GaussianLSS, StudentTLSS, or ZIPoLSS).
Code
simulator <- spatial_experiment |>
setup_margins(~ ns(pxl_col_in_fullres, 3) * ns(pxl_row_in_fullres, 3), ~ NBinomialLSS()) |>
estimate(spatial_experiment, mstop = 50)We can visualize the results using plot_bivariate. The smoothed values reveal that there is a subtle increasing trend from lower to higher pxl_row_in_fullres values within the main expression blocks – this was hard to tease out from the original data and is one of the benefits of fitting a model.
Code
features <- c("pxl_col_in_fullres", "pxl_row_in_fullres")
plot_bivariate(simulator, spatial_experiment, features, max_print = 20) +
labs(
"fill" = expression(log(1 + count)),
"color" = expression(log(1 + count))
)
Given this simulator, we can imagine planting negative controls by removing the spatial structure for some genes. This can be helpful for calibrating spatial differential expression tests. Alternatively, we could evaluate spatial clustering methods by defining a ground truth where many genes are simulated from exactly the same probability model.
